SP-XD-216 Air-cooled Xenon Lamp ageing Chamber
The SP-XD-216 Air-cooled Xenon-lamp Weathering Test Chamber accelerates the evaluation of material aging resistance by simulating natural environments such as sunlight, rainfall, and condensation, widely used in automotive, coatings, plastics, aerospace and other industries. Equipped with an air-cooled xenon lamp system and a programmable touch screen controller, it supports multi-mode cyclic tests including light exposure, temperature/humidity control, and rainfall simulation. It precisely controls irradiance (0.35-0.7W/m² at 340nm), temperature (RT+10℃~70℃) and humidity (30%-98%RH), complying with standards like GB/T16422.2 and ISO 4892-2. Featuring multi-layer safety protections (over-temperature, water shortage, leakage, etc.), it operates stably and reliably, serving as an ideal solution for material formulation screening and durability verification.
Product Details
Basic principle:
Weathering test is an important method to screen formulas and optimize product composition during scientific research and production, as well as one important quality inspection item, and the standards of some application materials, such as coating, plastic, aluminum-plastic plate, automobile safety glass, all state the necessity of weathering test. Sunshine and moisture are the main causes of aging of materials, the weathering test chamber can imitate damage caused by sunshine, rain and dew, to be specific, imitating sunshine through xenon lamp and rain and dew through moisture and condensate water. The test specimen shall be put in an environment with alternating and circulating sunshine and damp, so that the damage that may appear outside within several months or years can appear inside within several days or weeks, the data of accelerated aging test is helpful for us to select new material, improve the current material and evaluate how the change of formula impact the durability of the products.
Main characteristics:
Air-cooled device: The test chamber temperature ventilation cooling system shall be controlled by temperature controller automatically.
Raining system: Consisting of water pump, time relay, spray nozzle and so on with adjustable spray period.
It is allowed to measure radiation intensity of xenon lamp and adjust it.
Xenon lamp shall be cooled through air cooling method, reducing the operation and maintenance cost of the equipment.
Timing device: In order to record working time of every test, the equipment is equipped with a timer on its operation panel, which can control equipment’s working time so that the equipment shall shut off automatically upon reaching the set time point.
Protection device (stop protection facility of the entire equipment): In order to maintain normal operation of xenon lamp without damage, besides that the xenon lamp shall light on only when both the cooling system and the circuit start (which means the xenon lamp shall not work if the cooling fan is shut off), the xenon lamp shall go out when cooling fan is shut off due to fault during operation.
Technical Specification:
|
Main Technical Parameters |
|
|
|
|
|
Product Name Model |
Air-cooled Xenon-lamp Weathering Test Chamber SP-XD-216 |
|
Prohibition of test specimen |
The test equipment prohibits: Testing or storing inflammable, explosive and volatile test specimen. Testing or storing corrosive test specimen. Testing or storing biological test specimen. Testing or storing strong electromagnetic emission source test specimen. Testing or storing radioactive test specimen. Testing or storing toxic test specimens. Testing or storing the test specimens that may produce toxic substances during testing or storing process. |
|
Inner box dimensions |
600×600×600mm(W*D*H) |
|
|
|
|
Outer box dimensions |
Approximately 1150×1100×1850mm (Width x Depth x Height). Refer to the actual dimensions. |
|
Xenon lamp radiation intensity |
Ultraviolet radiation in the 340nm band, 0.35 - 0.7W/m2; |
|
Number of lamp tubes |
1 unit |
|
Power of lamp tubes |
2.5KW |
|
Life of lamp tubes |
Around 1500 hours |
|
Type of filter |
Sunscreen filter |
|
Temperature range |
RT + 10℃ to 70℃ |
|
Blackboard temperature range |
Adjustable from 40℃ to 100℃ (lighting period); 25 to 85℃ (dark period) |
|
Thermometer selection |
Blackboard thermometer BPT |
|
Irradiance meter |
Intelligent fully automatic irradiation intensity compensation |
|
Temperature accuracy |
±0.1℃ |
|
Temperature fluctuation degree |
±0.5℃ |
|
Temperature deviation |
±3℃ |
|
Humidity range |
30% - 98% RH (in darkness); 20% - 60% RH (when the light is on) |
|
Humidity accuracy |
±1%RH |
|
Humidity fluctuation degree |
±3%RH |
|
Humidity deviation |
Within ±5% RH |
|
Lighting cycle time |
1S to 999H 59M 59S can be adjusted continuously |
|
Rainfall duration |
1S to 9999 minutes of continuous rainfall can be adjusted |
|
Rainfall period |
Rainfall at intervals of 1 to 240 minutes (discontinuous) can be adjusted |
|
Spraying cycle |
18 minutes / 102 minutes or 12 minutes / 48 minutes (water spraying time / no water spraying time) |
|
Rainwater pressure |
0.12～0.15Mpa |
|
Spraying nozzle diameter |
Ф0.8mm |
|
Diameter of the turntable |
Ф400mm |
|
Rotation speed of the turntable |
1～3R/min |
|
Standard sample plate clip |
1 set A set of special sample board fixtures: |
|
Test standard |
GB/T16422.2-2014/ISO 4892-2:2006 GB/T8430-1998、ISO105-B04:1994 ISO 2046:1995 |
|
Test theory |
1) During the drying period, the temperature inside the test chamber should not exceed 40℃; the blackboard temperature measured under the same exposure conditions as the sample must not exceed 20℃ above the maximum temperature inside the test chamber during the drying period. 2) Spray duration: 1 minute. 3) Drying duration: 29 minutes. |
|
Water quality requirements |
Use pure water or deionized water |
|
Door sealing adhesive |
Silicone rubber tight sealing device |
|
Sample rack material |
SUS304 stainless steel |
|
Inner box material |
SUS304 stainless steel |
|
Outer box material |
Cold-rolled sheet with paint coating |
|
Filter |
daylight filter |
|
Control system |
|
|
Controller |

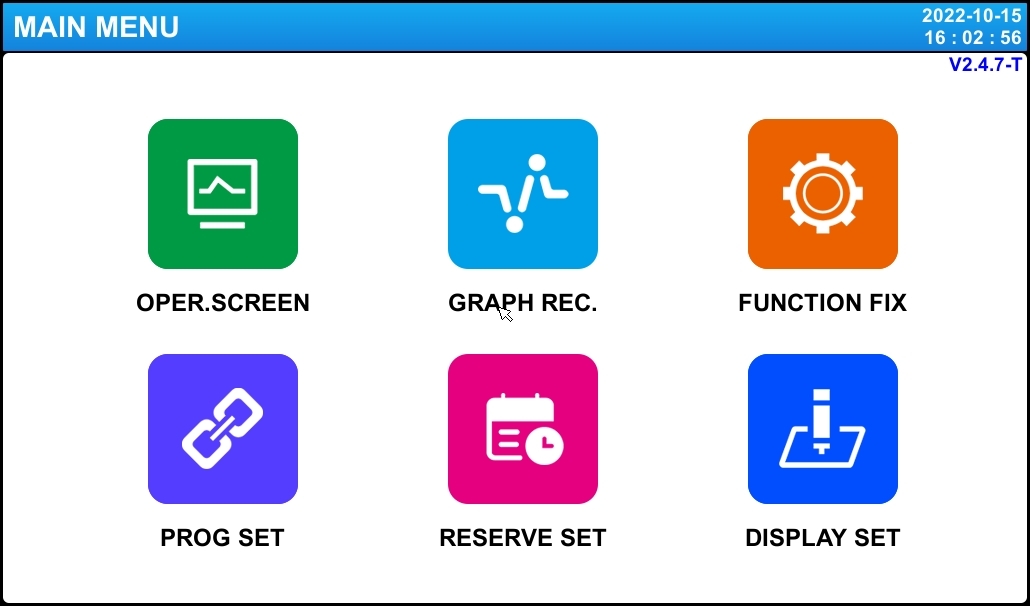

Programmable touch screen controller "Xenon Lamp Professional Controller" |
|
Control system |
1) The temperature control is achieved through the PLC program independently developed by the company and the adaptive temperature control technology. 2) The blackboard temperature, air temperature, irradiation intensity, water spraying time, stop spraying time, cumulative value, irradiation energy, and test cycle number can all be directly set and displayed. 4) The microcomputer performs intelligent control. After setting the temperature, the instrument automatically controls the heating, the heating power, and displays the heating status. The temperature control is precise and stable. Over-temperature alarm is triggered and the heating power is automatically cut off. |
|
Equipment operating conditions |
|
|
Protection system |
Over-temperature protection, water shortage protection, leakage, short circuit, phase missing protection, buzzer sounds when test time is up. |
|
Environmental conditions |
Temperature range: 5℃ - 28℃; Relative humidity ≤ 85% RH; Atmospheric pressure: 86kPa - 106kPa |
|
Power supply |
AC380V ± 10% (three-phase five-wire, install a separate 63A air switch, the air switch should have terminal blocks, the power cord should be 6 square mm or above; 50 ± 10%; 16KW). |
